ModuleX60 PICK UP
PICK UP Adjustable downlight PICK UP Spotlight
Standard SLEEK Pull-down
Short hood Medium hood Short hood Medium hood
COB 6.5W SX-B0654H/NSX-B0654H/N SX-B0654DSX-B0654D/M SX-B0654D/W SX-085PDSX-085PD SX-015PDSX-015PD/M SX-015PD/N
Halogen28/20W 12V SX-005DSX-005D SX-007DSX-007D SX-014PDSX-014PD SX-081SX-081 SX-014SX-014
MMP-060S/3H

ModuleX60

MMP-060S/3H

Track light
MUSEUM platform model
Ra93typ
Color temperature:2400/2700/3000/3500/4000
Color: White/Matteblack/Silver

Light source: 86.8Lm/W
Lighting fixture(Narrow): 36.8Lm/W(AC120V)
Lighting fixture(Medium): 39.2Lm/W(AC120V)
Life rating: 50,000hours. L70
Warranty: 5years
Binning: MacAdam3step

This fixture is compatible with 2-circuit track only.
The fixture attaches to both the left and right circuit rails of the track.
Please ensure that only one power feed is supplied to the track.

This track light fixture is compatible only with the following
UL listed track rails from Eutrac and Nordic.
(The details on the supported track rails and accessories
can be found by following the corresponding links)

EUTRAC type
・2 circuit surface-mounted track (~120V)
http://www.eutrac.de/3/147/en/products/~2_surface_track_standard_120v

・2 circuit surface-mounted track with data bus (~120V)
http://www.eutrac.de/3/133/en/products/~2_surface_track_with_data_bus_120v

・Track Accessories
http://www.eutrac.de/media/pdf/USA_2015_Internet.pdf

Nordic type
type TEK-44,48,412 NORDIC ALUMINIUM INC

  • MMP-060S/3H white
  • MMP-060S/3H silver
  • MMP-060S/3H matt black

Data Download

Specification Sheet Product data sheet Distribution data
EUTRAC
PDF
NORDIC
PDF

PDF

JPG
Installation Guide Fixture Drawing IES Data
EUTRAC
PDF
NORDIC
PDF
EUTRAC
DXF
NORDIC
DXF
Narrow
ies
Medium
ies
NORDIC non-dimming
Light DistributionFrame Color 2400K 2700K 3000K 3500K 4000K
M(19°) white MMP-060S/3H/W/1N/M/10A24/N1/2
-
MMP-060S/3H/W/1N/M/10A27/N1/2
-
MMP-060S/3H/W/1N/M/10A30/N1/2
-
MMP-060S/3H/W/1N/M/10A35/N1/2
-
MMP-060S/3H/W/1N/M/10A40/N1/2
-
silver MMP-060S/3H/S/1N/M/10A24/N1/2
-
MMP-060S/3H/S/1N/M/10A27/N1/2
-
MMP-060S/3H/S/1N/M/10A30/N1/2
-
MMP-060S/3H/S/1N/M/10A35/N1/2
-
MMP-060S/3H/S/1N/M/10A40/N1/2
-
matt black MMP-060S/3H/M/1N/M/10A24/N1/2
-
MMP-060S/3H/M/1N/M/10A27/N1/2
-
MMP-060S/3H/M/1N/M/10A30/N1/2
-
MMP-060S/3H/M/1N/M/10A35/N1/2
-
MMP-060S/3H/M/1N/M/10A40/N1/2
-
N(11°) white MMP-060S/3H/W/1N/N/10A24/N1/2
-
MMP-060S/3H/W/1N/N/10A27/N1/2
-
MMP-060S/3H/W/1N/N/10A30/N1/2
-
MMP-060S/3H/W/1N/N/10A35/N1/2
-
MMP-060S/3H/W/1N/N/10A40/N1/2
-
silver MMP-060S/3H/S/1N/N/10A24/N1/2
-
MMP-060S/3H/S/1N/N/10A27/N1/2
-
MMP-060S/3H/S/1N/N/10A30/N1/2
-
MMP-060S/3H/S/1N/N/10A35/N1/2
-
MMP-060S/3H/S/1N/N/10A40/N1/2
-
matt black MMP-060S/3H/M/1N/N/10A24/N1/2
-
MMP-060S/3H/M/1N/N/10A27/N1/2
-
MMP-060S/3H/M/1N/N/10A30/N1/2
-
MMP-060S/3H/M/1N/N/10A35/N1/2
-
MMP-060S/3H/M/1N/N/10A40/N1/2
-
EUTRAC 0-10V
Light DistributionFrame Color 2400K 2700K 3000K 3500K 4000K
M(19°) white MMP-060S/3H/W/1E/M/10A24/Z1/2
-
MMP-060S/3H/W/1E/M/10A27/Z1/2
-
MMP-060S/3H/W/1E/M/10A30/Z1/2
-
MMP-060S/3H/W/1E/M/10A35/Z1/2
-
MMP-060S/3H/W/1E/M/10A40/Z1/2
-
silver MMP-060S/3H/S/1E/M/10A24/Z1/2
-
MMP-060S/3H/S/1E/M/10A27/Z1/2
-
MMP-060S/3H/S/1E/M/10A30/Z1/2
-
MMP-060S/3H/S/1E/M/10A35/Z1/2
-
MMP-060S/3H/S/1E/M/10A40/Z1/2
-
matt black MMP-060S/3H/M/1E/M/10A24/Z1/2
-
MMP-060S/3H/M/1E/M/10A27/Z1/2
-
MMP-060S/3H/M/1E/M/10A30/Z1/2
-
MMP-060S/3H/M/1E/M/10A35/Z1/2
-
MMP-060S/3H/M/1E/M/10A40/Z1/2
-
N(11°) white MMP-060S/3H/W/1E/N/10A24/Z1/2
-
MMP-060S/3H/W/1E/N/10A27/Z1/2
-
MMP-060S/3H/W/1E/N/10A30/Z1/2
-
MMP-060S/3H/W/1E/N/10A35/Z1/2
-
MMP-060S/3H/W/1E/N/10A40/Z1/2
-
silver MMP-060S/3H/S/1E/N/10A24/Z1/2
-
MMP-060S/3H/S/1E/N/10A27/Z1/2
-
MMP-060S/3H/S/1E/N/10A30/Z1/2
-
MMP-060S/3H/S/1E/N/10A35/Z1/2
-
MMP-060S/3H/S/1E/N/10A40/Z1/2
-
matt black MMP-060S/3H/M/1E/N/10A24/Z1/2
-
MMP-060S/3H/M/1E/N/10A27/Z1/2
-
MMP-060S/3H/M/1E/N/10A30/Z1/2
-
MMP-060S/3H/M/1E/N/10A35/Z1/2
-
MMP-060S/3H/M/1E/N/10A40/Z1/2
-

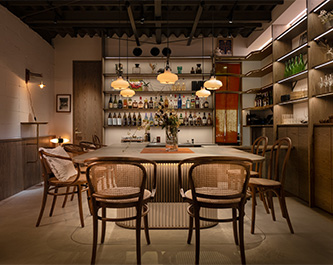

Sushi Hachimaru
