Track light
MUSEUM platform model
Ra93typ
Color temperature：2700/3000/3500/4000
Color： White・Matt black・Silver
Light source：74.7Lm/W
Lighting fixture(Narrow)：33.8Lm/W(AC120V)
Lighting fixture(Medium)：42.0Lm/W(AC120V)
Life rating： 50,000hours. L70
Warranty： 5years
Binning： MacAdam3step
This fixture is compatible with 2-circuit track only.
The fixture attaches to both the left and right circuit rails of the track.
Please ensure that only one power feed is supplied to the track.
This track light fixture is compatible only with the following
UL listed track rails from Eutrac and Nordic.
(The details on the supported track rails and accessories
can be found by following the corresponding links)
EUTRAC type
・2 circuit surface-mounted track (～120V)
http://www.eutrac.de/3/147/en/products/～2_surface_track_standard_120v
・2 circuit surface-mounted track with data bus (～120V)
http://www.eutrac.de/3/133/en/products/～2_surface_track_with_data_bus_120v
・Track Accessories
http://www.eutrac.de/media/pdf/USA_2015_Internet.pdf
Nordic type
type TEK-44,48,412 NORDIC ALUMINIUM INC
| Specification Sheet | Product data sheet | Distribution data |
|---|---|---|
EUTRAC
NORDIC
|
|
|
| Installation Guide | Fixture Drawing | IES Data |
|
EUTRAC
NORDIC
|
EUTRAC
NORDIC
|
Narrow
Medium
|
| Light Distribution | Frame Color | 2700K | 3000K | 3500K | 4000K |
|---|---|---|---|---|---|
| M(19°) | white | MMP-100S/3H/W/1N/M/30B27/N1/2 - |
MMP-100S/3H/W/1N/M/30B30/N1/2 - |
MMP-100S/3H/W/1N/M/30B35/N1/2 - |
MMP-100S/3H/W/1N/M/30B40/N1/2 - |
| silver | MMP-100S/3H/S/1N/M/30B27/N1/2 - |
MMP-100S/3H/S/1N/M/30B30/N1/2 - |
MMP-100S/3H/S/1N/M/30B35/N1/2 - |
MMP-100S/3H/S/1N/M/30B40/N1/2 - |
|

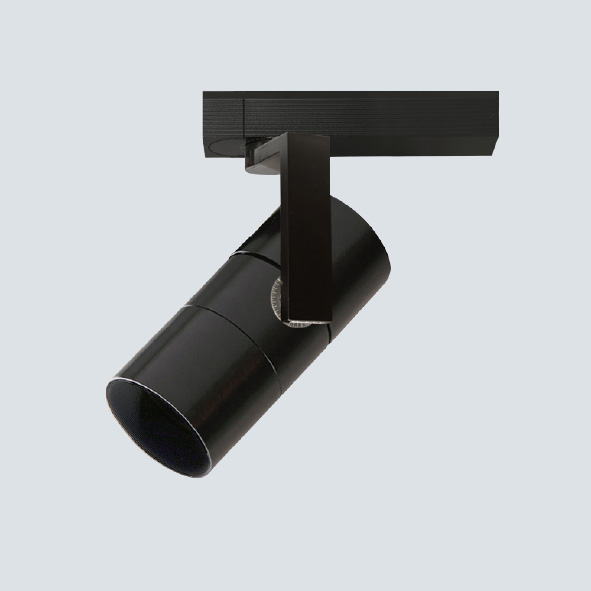

| matt black | MMP-100S/3H/M/1N/M/30B27/N1/2 - |
MMP-100S/3H/M/1N/M/30B30/N1/2 - |
MMP-100S/3H/M/1N/M/30B35/N1/2 - |
MMP-100S/3H/M/1N/M/30B40/N1/2 - |
|
| N(11°) | white | MMP-100S/3H/W/1N/N/30B27/N1/2 - |
MMP-100S/3H/W/1N/N/30B30/N1/2 - |
MMP-100S/3H/W/1N/N/30B35/N1/2 - |
MMP-100S/3H/W/1N/N/30B40/N1/2 - |
| silver | MMP-100S/3H/S/1N/N/30B27/N1/2 - |
MMP-100S/3H/S/1N/N/30B30/N1/2 - |
MMP-100S/3H/S/1N/N/30B35/N1/2 - |
MMP-100S/3H/S/1N/N/30B40/N1/2 - |
|
| matt black | MMP-100S/3H/M/1N/N/30B27/N1/2 - |
MMP-100S/3H/M/1N/N/30B30/N1/2 - |
MMP-100S/3H/M/1N/N/30B35/N1/2 - |
MMP-100S/3H/M/1N/N/30B40/N1/2 - |
| Light Distribution | Frame Color | 2700K | 3000K | 3500K | 4000K |
|---|---|---|---|---|---|
| M(19°) | white | MMP-100S/3H/W/1E/M/30B27/Z2/2 - |
MMP-100S/3H/W/1E/M/30B30/Z2/2 - |
MMP-100S/3H/W/1E/M/30B35/Z2/2 - |
MMP-100S/3H/W/1E/M/30B40/Z2/2 - |
| silver | MMP-100S/3H/S/1E/M/30B27/Z2/2 - |
MMP-100S/3H/S/1E/M/30B30/Z2/2 - |
MMP-100S/3H/S/1E/M/30B35/Z2/2 - |
MMP-100S/3H/S/1E/M/30B40/Z2/2 - |
|
| matt black | MMP-100S/3H/M/1E/M/30B27/Z2/2 - |
MMP-100S/3H/M/1E/M/30B30/Z2/2 - |
MMP-100S/3H/M/1E/M/30B35/Z2/2 - |
MMP-100S/3H/M/1E/M/30B40/Z2/2 - |
|
| N(11°) | white | MMP-100S/3H/W/1E/N/30B27/Z2/2 - |
MMP-100S/3H/W/1E/N/30B30/Z2/2 - |
MMP-100S/3H/W/1E/N/30B35/Z2/2 - |
MMP-100S/3H/W/1E/N/30B40/Z2/2 - |
| silver | MMP-100S/3H/S/1E/N/30B27/Z2/2 - |
MMP-100S/3H/S/1E/N/30B30/Z2/2 - |
MMP-100S/3H/S/1E/N/30B35/Z2/2 - |
MMP-100S/3H/S/1E/N/30B40/Z2/2 - |
|
| matt black | MMP-100S/3H/M/1E/N/30B27/Z2/2 - |
MMP-100S/3H/M/1E/N/30B30/Z2/2 - |
MMP-100S/3H/M/1E/N/30B35/Z2/2 - |
MMP-100S/3H/M/1E/N/30B40/Z2/2 - |
